Brand Name: DJI
Item Name: DJI Phantom 2 New version
Aircraft Specifications:
Weight (Battery & Propellers included): 1000g
Hover Accuracy (Ready to Fly): Vertical: 0.8m; Horizontal: 2.5m
Max Yaw Angular Velocity: 200°/s
Max Tilt Angle: 35°
Max Ascent / Descent Speed: Ascent: 6m/s; Descent: 2m/s
Max Flight Speed: 15m/s(Not Recommended)
Diagonal Length: 350mm
Flight Time: 25mins
Take-off Weight: ≤1300g
Operating Temperature: -10°C ~ 50°C
Supported Battery: DJI Smart Battery
DJI Smart Battery Specifications:
Type: 3S LiPo
Capacity: 5200mAh, 11.1V
Charging Environment Range: 0℃ to 40℃
Discharging Environment Range: -20℃ to 50℃

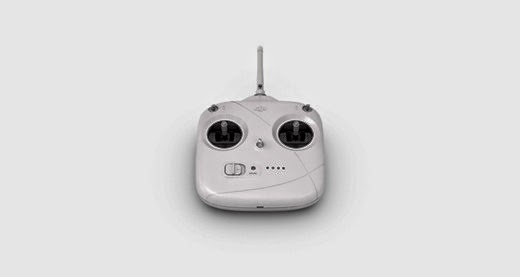

2.4GHz Remote Control Specifications:
Operating Frequency: 2.4GHz ISM
Communication Distance (open area): 1000m
Receiver Sensitivity (1%PER): -97dBm
Working Current/Voltage: 120 mA@3.7V
Built-in LiPo Battery Working Current/Capacity: 3.7V, 2000mAh
H3-3D Gimbal Specifications:
Operating Static current: 400mA (@12V)
Operating Dynamic current: 600mA (@12V)
Gimbal Input Power: 3S~6S (12V ~ 26V)
Operating Temperature: -10°C ~ 50°C
Gimbal Weight: 168g (camera excluded)
Gimbal Dimensions (With Damping Unit): 97mm X 95mm X 73mm
Controlled Angle Accuracy: Tilt/Roll: ±0.02°; Yaw: ±0.03°
Maximum Controlled Rotation Speed: Tilt axis: ±130°/s
Controlled Rotation Range: Tilt axis control: -130 ~ +45°
Supported Camera: GoPro3, GoPro3+ Black and Sliver
Assistant Software System Requirement: Windows XP SP3; Windows 7; Windows 8
Features:
DJI Phantom 2 New Version:
Ready to Fly, Multifunctional Quad-rotor System
Customized H3-2D and H3-3D Gimbal Support
Precision Flight and Stable Hovering
25min Flight Time & Smart Battery
Auto Return-to-Home & Landing
Advanced Power Management
Intelligent Orientation Control (IOC)
Easy Battery Replacement
Self-tightening Propeller
Video Downlink Support
CAN-Bus Expansion Module
Zenmuse H3-3D Gimbal:
3-axis gimbal
High precision brushless servo control
Aluminum alloy body
Built-in IMU module
Light-weight
A2, WKM, NAZA-M, NAZA-M V2 ,PHANTOM 2 supported
GoPro3 and GoPro3+ supported
Zenmuse technology
Package Included:
1 x DJI Phantom 2 New RC Quadcopter
1 x Transmitter
1 x Charger
1 x Battery
1 x Manual
1 x Zenmuse H3-3D Gimbal
For more information ,Please Click Here: DJI Phantom 2 H3-3D New (New Arrival)
