GARTT GT450 FBL Flybarless Belt Drive Helicopter fits Trex 450 Review


Features:

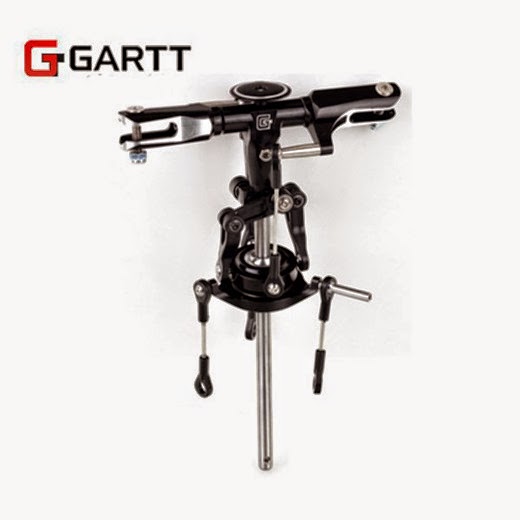

• Newly designed low wind resistance rotor head assembly with reduced distance between rotor head and frame, effectively lowering the CG for better 3D performance.
• Single piece integrated design of main bearing block and servo mount.
• Single piece integrated design of anti-rotation guide and gyro mount.
• Single piece integrated landing gear.
• High precision head system.
• Newly designed high resolution swashplate.
• Single piece battery mount with integrated canopy mount designed to bring CG closer to disk plane.
• Highly rigid frame with single piece carbon side and bottom plates.
• Torque-Tube tail design.
• Weighted tail rotor blade grips to repel centripetal forces.
• Straight-up in-frame alloy rudder servo mount for improved geometry and better CG.
• Newly designed aerodynamic canopy.
• Newly designed high strength main blade grips.
• Upgraded metal tail slider and tail slider control arm.

Description:
Length: 635mm
Height: 230mm
Main Rotor Diameter: 710mm
Tail Rotor Diameter: 158mm
Motor Drive Gear: 13T
Main Drive Gear: 150T
Autorotation Tail Drive Gear: 106T
Tail Drive Gear: 25T
Drive Gear Ratio: 1:11.5:4.24
Flying Weight: Approx. 450g
Package weight: approx. 850g

Package includes:
1 x GT450 PRO GT 3D Electric Helicopter Kit
1 x Fiberglass Canopy
1 x Carbon Fiber Main Blades
All Necessary Hardware

Required items(Not included):
1 x Brushless Outrunner Motor
1 x Servos
1 x Gyro
1 x Receiver
1 x ESC
1 x Lipoly Battery (2200mAh 3S)

For more information ,Please Click Here: GARTT GT450
